Station specifications
The phone charging station range in technical detail: dimensions, power, connectivity, screens and certifications for the Compact-8, Pro-12 and Titan-24.
ZAPT · Keeps guests chargedAugust 2026
The range
Three stations, sized to the room.
Built into every station
- Payment
- Stripe POS terminal
- Connectivity
- 4G and WiFi
- Screen
- Full-colour HD display
- Housing
- Fireproof ABS and metal
- Operating range
- −10 to 40°C
- USB output
- DC5V / 2A per port
Certifications
- CE
- EU conformity
- FCC
- US emissions
- RoHS
- Restricted substances
- MSDS
- Safety data
- UN38.3
- Transport tested
The station carries its own 4G alongside WiFi, so it does not depend on the venue network.

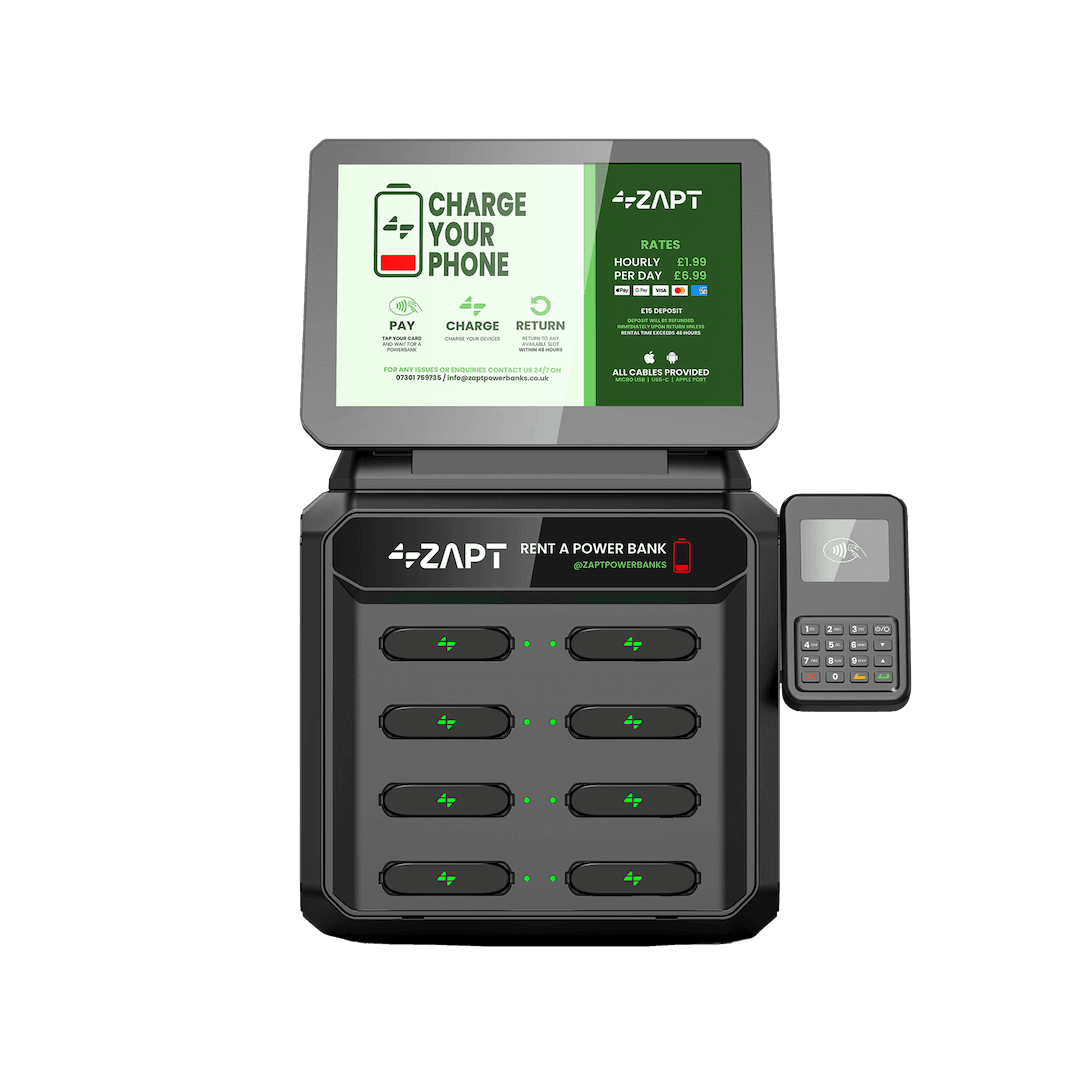

Compact-8
Countertop station, 8 slots
- Model
- ZAPT Compact-8
- Slots
- 8
- Colour
- Black
- Connectivity
- 4G and WiFi
- Material
- Fireproof ABS and metal
- Payment
- Stripe POS terminal
- Max power
- 60W
- Power input
- DC12V / 5A
- USB output
- DC5V / 2A
- Single port output
- DC5V / 1.5A
- Operating temperature
- −10 to 40°C
- Working humidity
- 45 to 75%
- Screen
- 10.1 inch, 1280 × 800 px
- Station size
- 26 × 18 × 28 cm
- Package size
- 45 × 38.5 × 25.5 cm
- Weight
- 4.45 kg with power banks

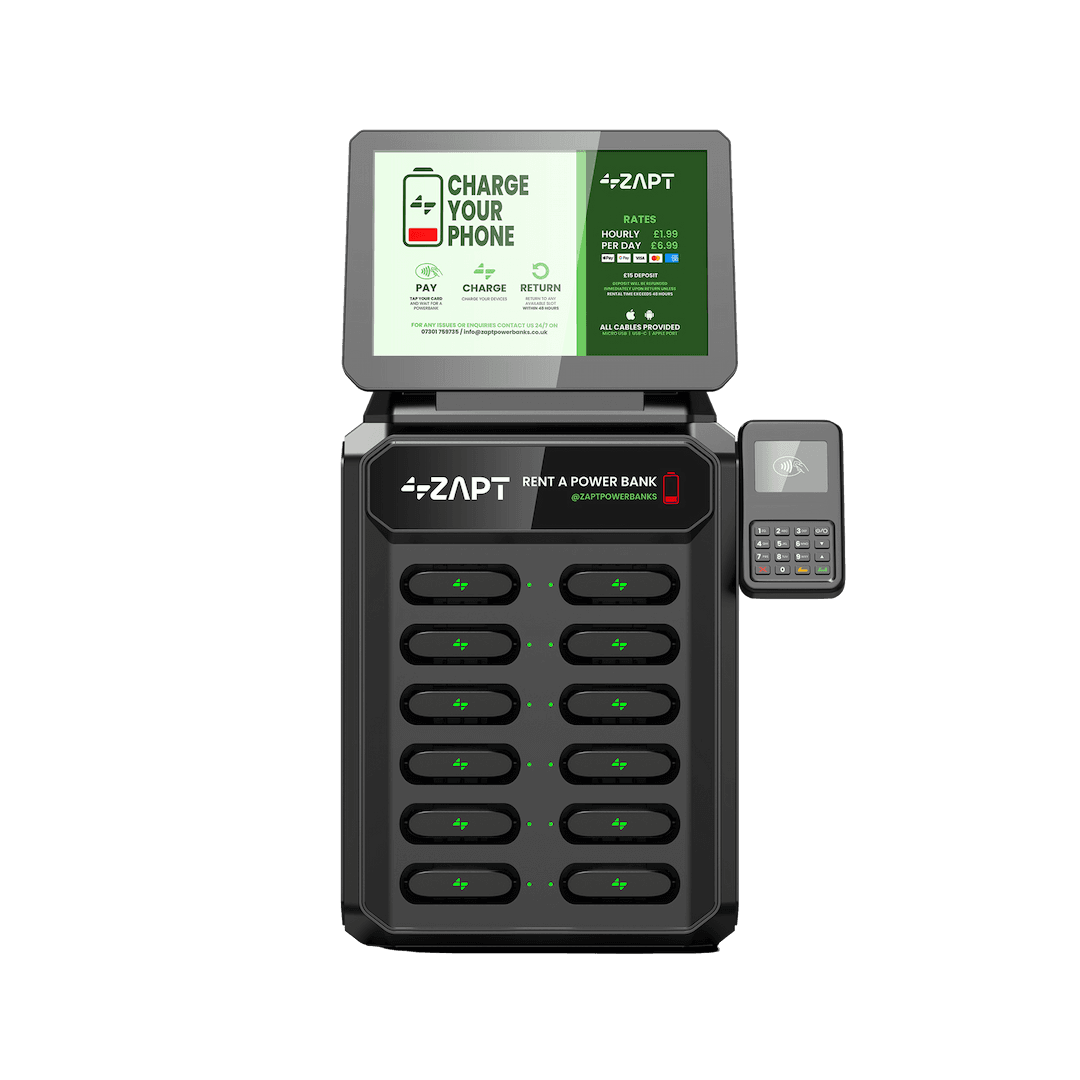

Pro-12
Countertop station, 12 slots
- Model
- ZAPT Pro-12
- Slots
- 12
- Colour
- Black
- Connectivity
- 4G and WiFi
- Material
- Fireproof ABS and metal
- Payment
- Stripe POS terminal
- Max power
- 60W
- Power input
- DC12V / 5A
- USB output
- DC5V / 2A
- Single port output
- DC5V / 1.5A
- Operating temperature
- −10 to 40°C
- Working humidity
- 45 to 75%
- Screen
- 10.1 inch, 1280 × 800 px
- Station size
- 26 × 20 × 39 cm
- Package size
- 48 × 44.5 × 27.5 cm
- Weight
- 7.7 kg with power banks

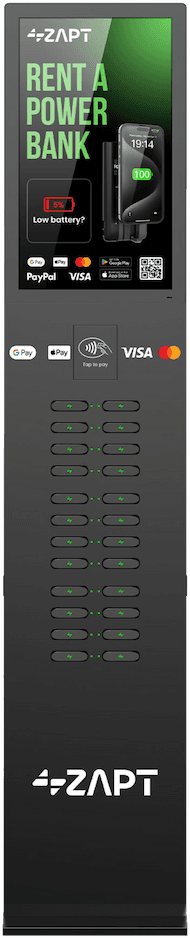

Titan-24
Floor-standing tower, 24 slots
- Model
- ZAPT Titan-24
- Slots
- 24
- Colour
- Black
- Connectivity
- 4G and WiFi
- Material
- Fireproof ABS and metal
- Payment
- Stripe POS terminal
- Max power
- 160W
- Power input
- AC100 to 240V, 50 to 60Hz, 3A
- USB output
- DC5V / 2A
- Single port output
- DC5V / 1.5A
- Operating temperature
- −10 to 40°C
- Working humidity
- 45 to 75%
- Screen
- 23.8 inch, 1080 × 1920 px
- Station size
- 35.5 × 45 × 180 cm
- Package size
- 189 × 30 × 54 cm
- Weight
- 30.85 kg without power banks
Questions about the hardware go to info@zaptpowerbanks.co.uk. The power bank has its own sheet at /specs/powerbanks.
